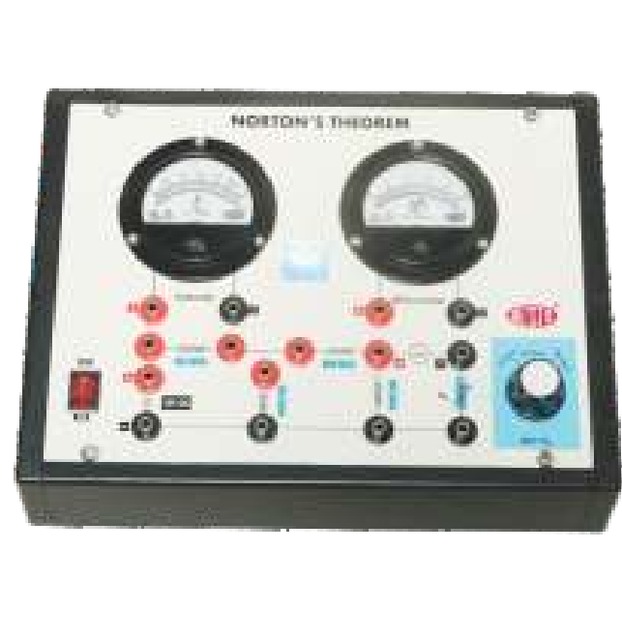

Nortons Theorem With Two Analog Meters

Instrument comprises of one fixed IC regulated power supplies 12V @100mA. One dual range round panel meter of model MO65 (15V/3V) & another one is of single range of 15mA
is used for volt age & current measurements. Both are mounted on the front panel with their respective sockets.

Load variation facility is provided by one pole 3-way band switch

Load resistance : 25,50 & 100 ohm.

Fixed resistance :  500, 1 K & 2 K ohm Provided on the panel

Fuse for short circuit protection. Supplied with required quantity of 4mm banana plug leads & instruction manuals.
